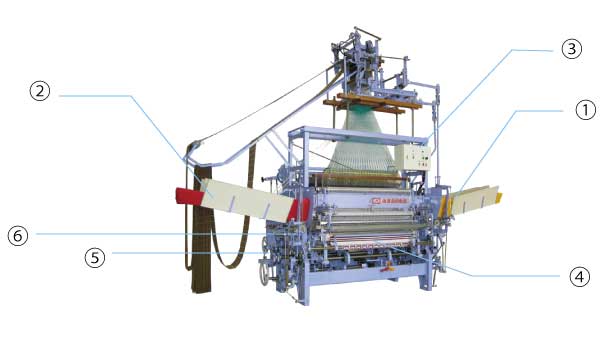

RF-2200 Model
FRONT UNDER PIPE is made by stainless steel pipe and can rotate. This mechanism produces better finishing mats. The ratchet pawl have stopper to prevent turned over.
The large size feeder is equipped same as RF-2000. This feeder is made by steel plate for better performance turned over.
New function of Mis-fed preventing mechanism is added for more selections of Automatic-stop options. You can choose 1-2-4-8 pc pipe stop options depends on the designs.
Heat-Created natural rubber is used for WINDING ROLL. This new Winding Roll last longer and not peeling off easily.
This device deliver the warp thread constantly to make the mat length even. You can adjust the mat length & thickness from very wide range.
The yellow rubber roller is made by hard material for long life. Center metal core is equipped for low cost replacement of rubber.
