AR-35SH Model
The extruder is specially designed to manufacture high quality PP round pipe in an even thickness and diameter.
Such fine PP pipes make feeding trouble free and a smooth going process.
Because it is a one-line system, the flow of PP resin is smooth and the quaritily of extrusion is stabilized without unevenness.
There for making it possible to extrude a uniform diameter of PP pipe.
The length of PP pipe can be fixed optionally from 61cm to 215cm and precisely finished in an even length.
The operation is a very simple one with relatively few problems involved in the manufacture of the PP pipe.
Adjustments to the machine can be made easily and satisfactorily.
This extruder is highly economical due to its excellent low cost, manufacturing capacity and the reduced loss of raw materials.
Because this machine is very compact, you can make the best of limited space effectively.
The take-up and cutter unit uses a rotary cutter, that makes the cutting of PP pipes a smooth process.

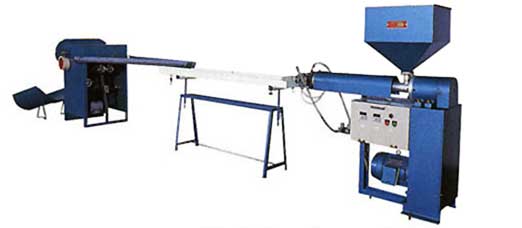

This extruder consists of a main extruder, a quenching bath, a take-up & cutting unit and a pipe receptacle.
Please note that for future product improvement external design and sped fications are subject to change without previou notice.
